Yaskawa Large LCD Glass Substrate Handling Robot MOTOMAN-MFL1200D-1600

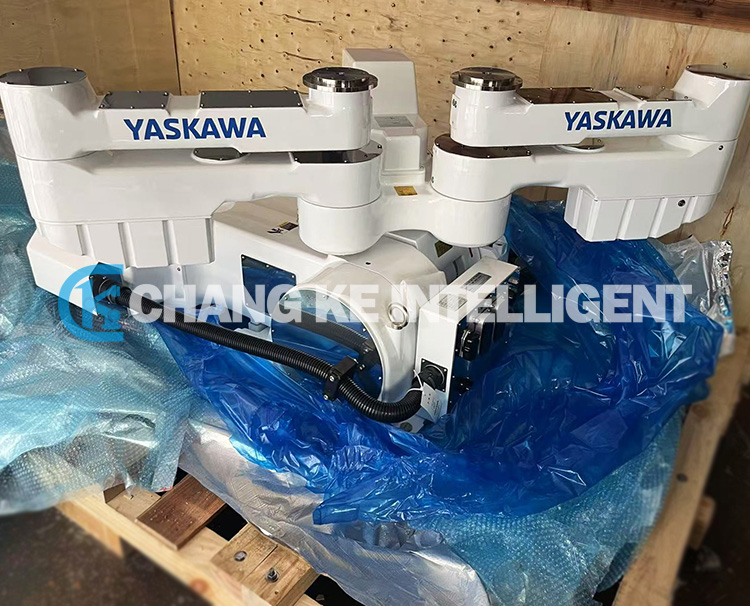

Guangzhou Changke Intelligence is a service provider for the Yaskawa FPD industry. The new Yaskawa large LCD glass substrate high-speed handling robot MOTOMAN-MFL1200D-1600 purchased for customers has arrived today and will be transported to the customer's factory for installation and integration in a few days.
The Yaskawa MOTOMAN-MFL1200D-1600 is suitable for high-speed handling of ultra large LCD glass substrates, maximizing the use of long-distance up and down bending, low pass line, and dual wrist performance to achieve high-speed handling of multi-layer LCD glass substrates in cleanrooms.
Yaskawa Dual arm Robot MOTOMAN-MFL1200D-1600 Parameters:
TYPE：YR-MFL020D-A10
Load weight: 30 kg
Body weight: 700 kg
Repetitive positioning accuracy: 0.1 mm
Action range:
U-axis (upper and lower axes): ± 1600 mm (speed: Max.1220 mm/s)
S-axis (rotation axis): -305 to+35 ° (speed: 180 °/s)
L. R-axis (front and rear axis): ± 1175mm (speed: Max.2100 mm/s)
Allowable torque:
L. R axis (front and rear axes): 100N · m Allowable moment of inertia: L, R axis (front and rear axes): 15kg · m2
Power supply: 4KVA
Control cabinet: DX200
Origin: Japan
